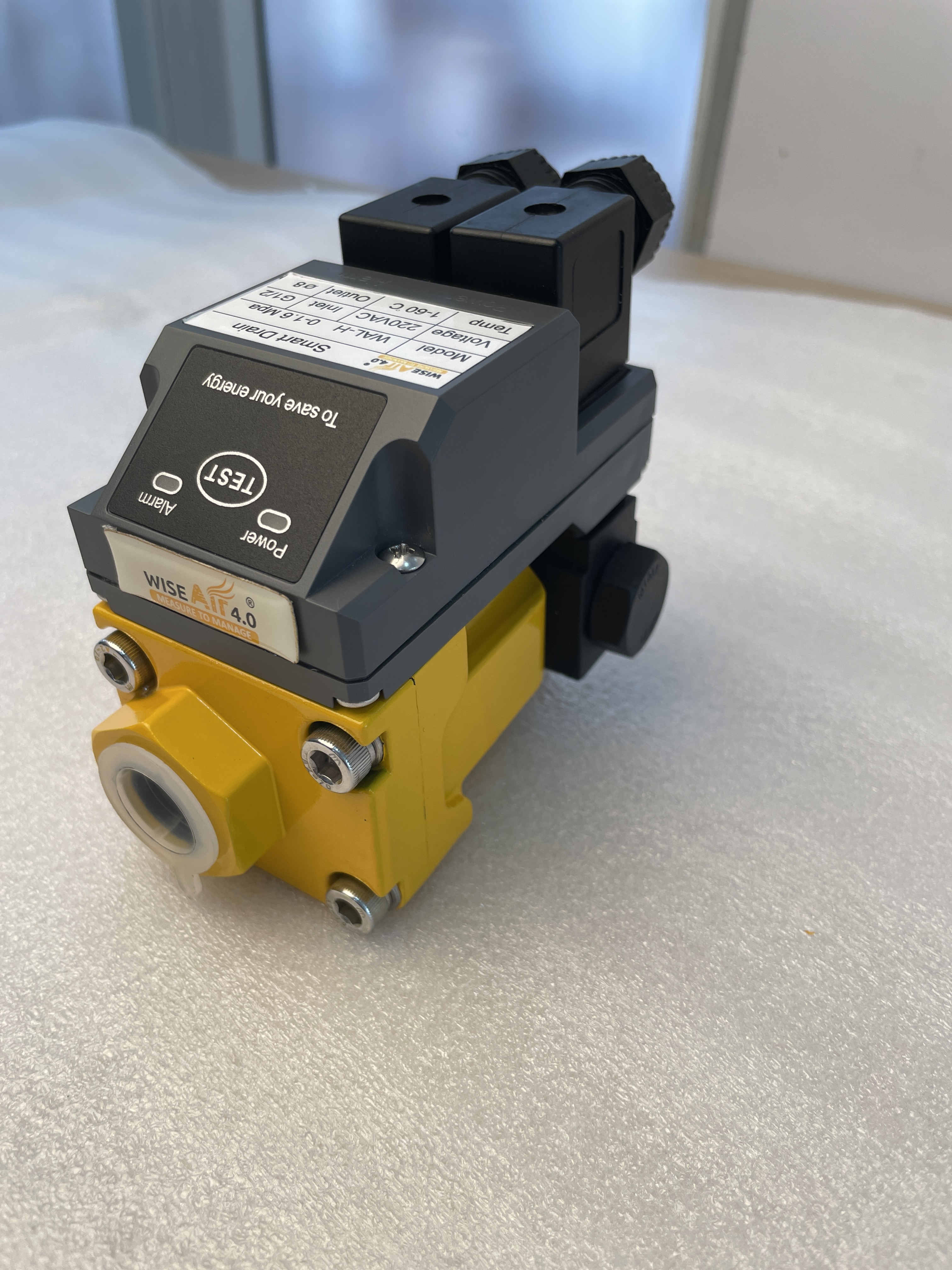

WAL – Electronic Zero Air Loss Drain

Zero Air Loss Technology

The WAL Series Smart Zero Air Loss Drain by WiseAir Technologies represents a significant leap forward in the management of condensate water within compressed air systems. Our
Smart Drain is a sophisticated, electronically controlled zero air-loss drain designed to maintain the quality of compressed air by timely discharging condensate laden with oil and
impurities.
Embracing the innovative CPU control system, the WiseAir Technologies WAL Series Smart
Drain ensures effective and efficient condensate discharge aligned with actual demand,
thereby eliminating any needless air loss and promoting energy conservation.
The WAL Series moves beyond traditional drain design, eschewing complex internal
mechanisms for a sleek, modular structure that replaces the old with the new. This eliminates the dependency on external power in idle periods, thereby safeguarding the
system and reducing operational costs.
WiseAir Technologies has meticulously assembled this Smart Drain to be devoid of
complicated sensors and valves, offering an intuitive and maintenance-friendly experience. Our commitment to quality is evident as the Smart Drain undergoes rigorous validation
across a range of conditions to guarantee superior functionality and longevity.

How Does the WAL Electronic Zero Air Loss Drain Work?

The WAL uses a CPU-based control system that adapts to the condensate level in real time. When enough condensate has collected, the drain discharges it, and when there is nothing to remove, it stays closed instead of opening on a fixed timer.

Because it discharges according to actual demand, compressed air is not blown out along with the water. A translucent housing lets your team see the condensate level at a glance, and the modular structure keeps maintenance simple.

Why Does Condensate Need to Be Removed Promptly?

Condensate in a compressed air system often carries oil and impurities. If it is left to collect, it travels downstream and can lower the quality of the air that reaches your equipment and process.

Large plants with long pipe runs and many receivers have more low points where water collects, as described in our guide to compressed air monitoring for cement plants. Drains that waste air also add to your energy cost, and you can calculate your compressed air savings and payback to see what reducing that waste is worth.

Which Condensate Drain Suits Your System?

The WAL can be ordered with optional stainless steel parts for applications with high condensate volume or high pressure, and an optional heating feature supports operation in cold environments. An LED display and alarm signals alert your team when the drain is not operating normally.

If you prefer a pneumatic float-operated design, the magnetic smart condensate drain is the alternative to compare. Choosing between them depends on your plant’s condensate load, available power and operating environment.

Features :

• Smart Control: CPU-based operation adapts to real-time condensate levels.
• Modular Design: Simplifies maintenance and promotes system longevity.
• Energy Efficiency: Operates without power in standby mode, reducing energy consumption.
• Transparency:Translucent housing for easy monitoring of condensate levels.
• Alarm System: LED display and alarm signals for operational anomalies.
• Robust Construction: Built to prevent clogs and ensure continuous flow.
• Customizable Options: Supports excessive volume and high-pressure applications with optional stainless steel products.
• Frost Protection: Optional heating for reliable operation in cold environments.
