WA-EUS-750-ACOUSTIC LEAK IMAGER
Acoustic Leak Imager WA-EUS-750

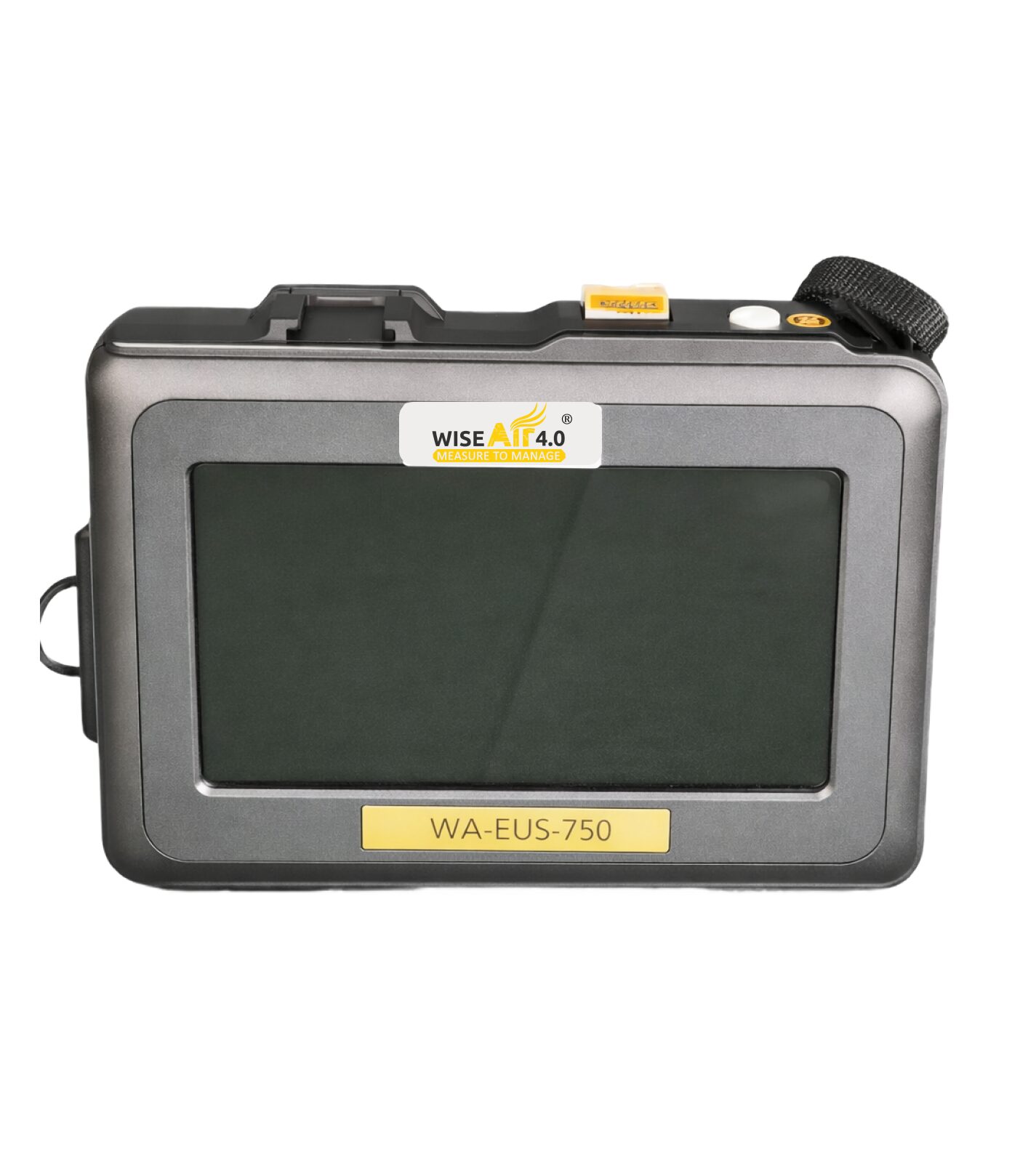

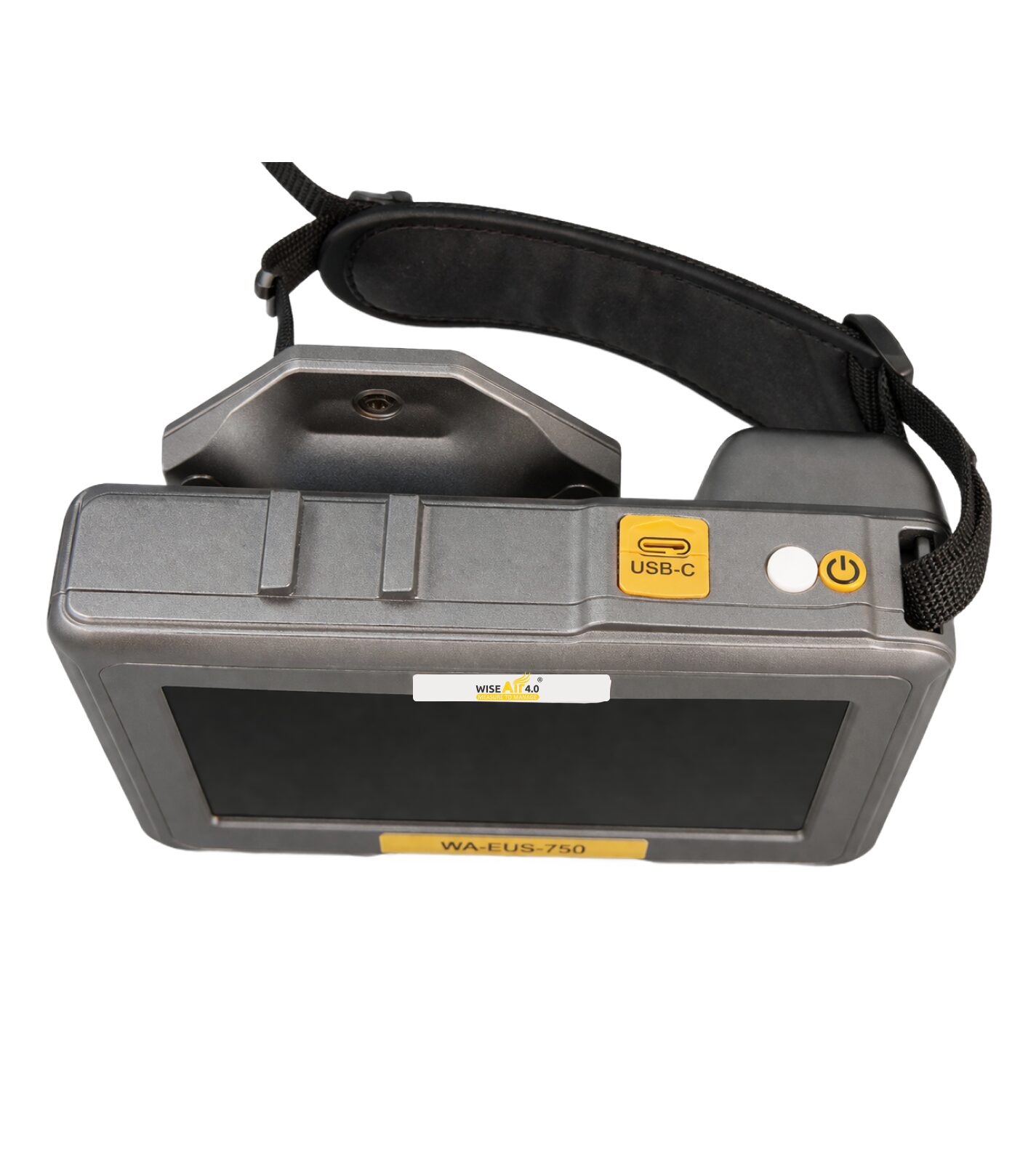

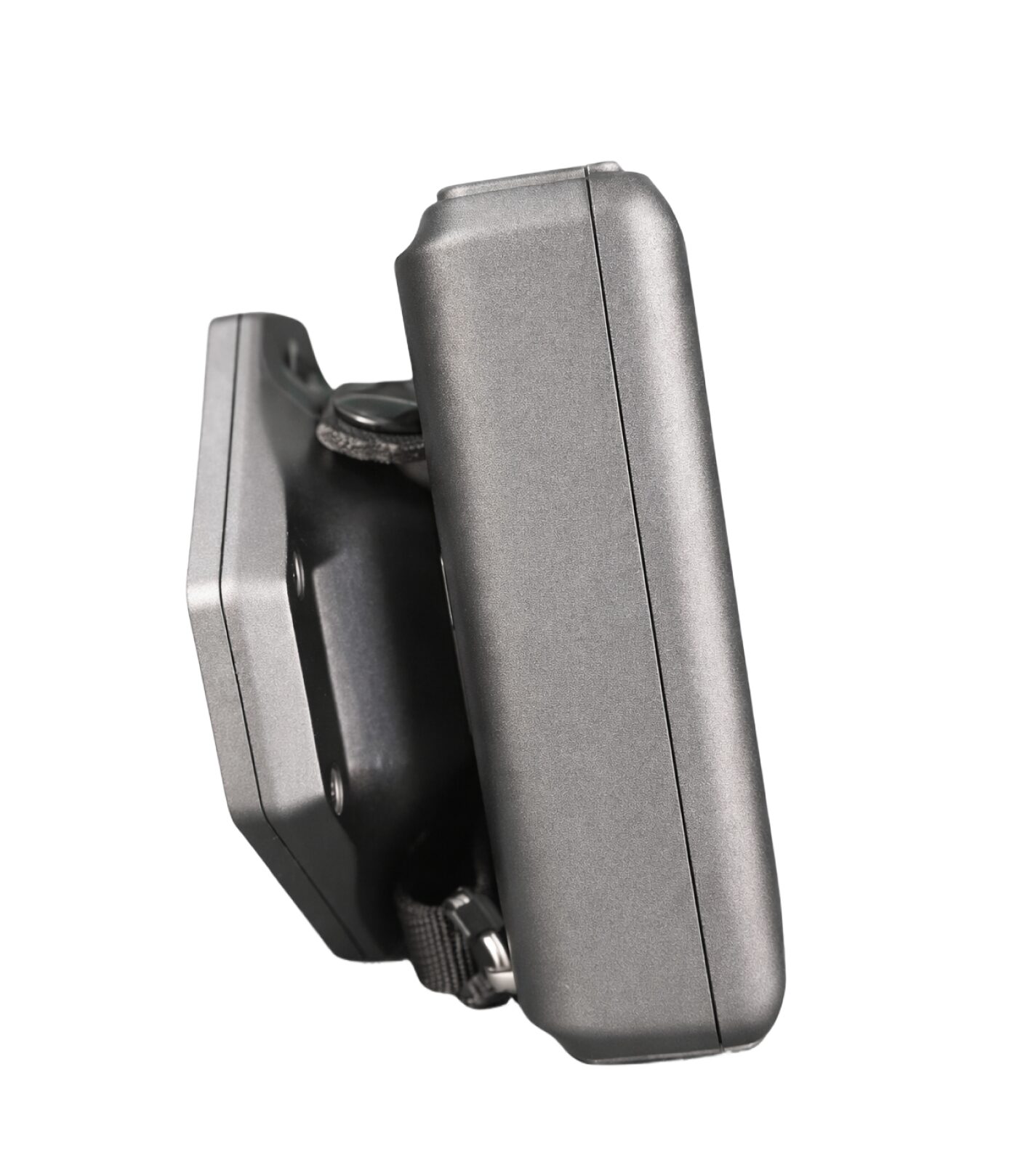

WA-EUS-750
MINIATURE ULTRASONIC ACOUSTIC IMAGER
The WA-EUS-750 is a compact ultrasonic acoustic imaging tool designed to visually locate compressed air and gas leaks quickly and accurately.
By converting high-frequency leak noise into a real-time visual sound map, maintenance teams can identify leak sources from a distance — even in complex and noisy plant environments.
With fast scanning and clear visual indication, the WA-EUS-750 helps teams prioritize repairs, reduce troubleshooting time, and cut energy losses caused by compressed air leaks.
Why Ultrasonic Acoustic Imaging?
Gas leaks generate ultrasonic sound (typically above 20 kHz) due to turbulence when gas escapes from a higher-pressure region through a small opening.
This sound is highly directional, which makes it ideal for pinpointing leak locations.
The WA-EUS-750 converts ultrasonic information into an easy-to-interpret visual display, allowing faster leak finding with less operator guesswork.
Key Features
• Real-time visual ultrasonic leak detection (sound map display)
• Fast scanning for locating multiple leaks quickly
• Ideal for compressed air and industrial gas leak surveys
• Works effectively in noisy plant environments
• Helps prioritize repairs by identifying stronger leak sources first
• Compact, field-ready format suitable for routine maintenance rounds
• CE marked in accordance with applicable EU Directives.
Declaration of Conformity available upon request.
Applications
• Compressed air leak detection and leak surveys
• Industrial gas leak detection (as applicable)
• Maintenance troubleshooting in noisy production areas
• Prioritizing leak repair actions during audits
• Routine plant maintenance rounds and quick checks
Related Case Studies & Blogs
Case Study: Reducing Costs in Your Compressed Air System
See how identifying and fixing compressed air leaks helped a plant save 500 CFM and reduce maintenance costs dramatically.
How Compressed Air Monitoring Pays for Itself
A real-world case study showing how leak detection and monitoring delivers measurable ROI in manufacturing.
The Power You Don't See
Understand the hidden energy costs of compressed air leaks and why smart monitoring is the future of efficiency.
Where the WA-EUS-750 acoustic imager fits

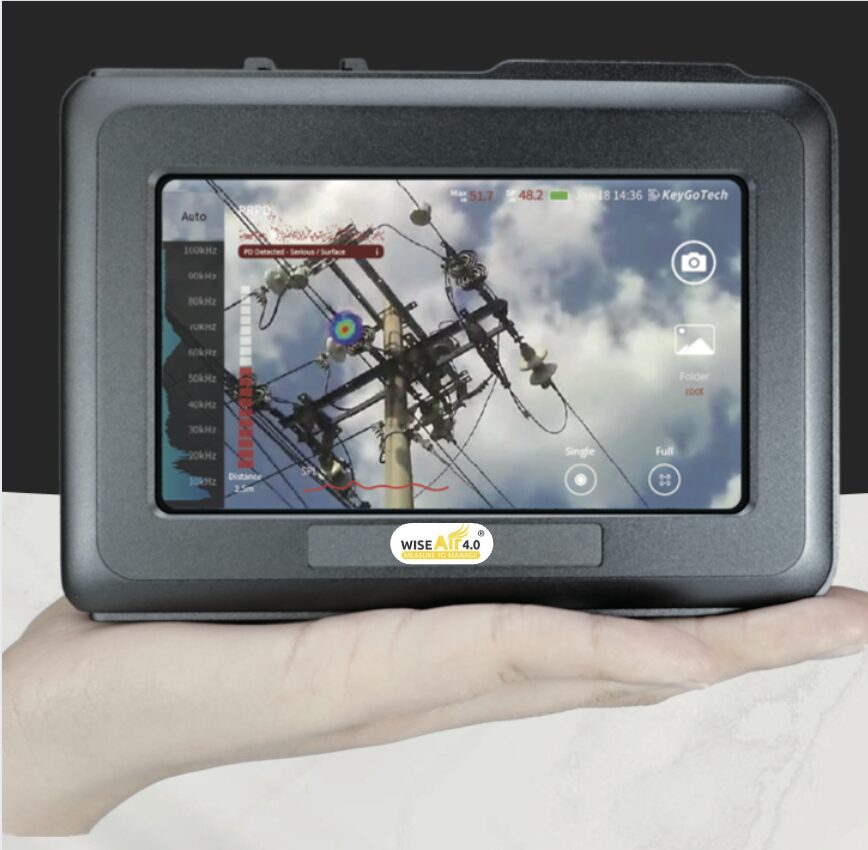

An acoustic imaging camera answers a different question from a handheld detector. A detector tells you that you are near a leak. The WA-EUS-750 shows you the leak as a coloured overlay on a live image of the pipework in front of you, from a distance, while the plant is running.
That changes what a survey costs in time. Pipework at height, congested runs above machinery, and long distribution mains are the places where a handheld instrument is slow and a ladder is involved. With an imager they are scanned from the floor.
When imaging beats a handheld detector
Be honest about which situation you are in, because the imager is the larger investment:
| Situation | Better tool | Why |
|---|---|---|
| Whole-plant survey, once or twice a year | WA-EUS-750 imager | Ground covered per hour is the dominant cost. Imaging is several times faster over large areas. |
| High-level pipework and overhead mains | WA-EUS-750 imager | No access equipment, no permit to work at height, no scaffold hire. |
| Weekly walk-round by shift maintenance | WA-EUS-740 | Simple, quick, always to hand. Frequency of use beats capability. |
| Diagnosing whether a noise is a leak, a bearing or a discharge | WA-EUS-720 | Listening to the actual sound signature through headphones discriminates sources. |
| Producing a report for management or a customer | WA-EUS-750 imager | A visual sound map on a photograph of the plant needs no explanation. A written list of tag numbers does. |
The reporting advantage is underrated. Most leak repair budgets are lost in the gap between the technician who found the leak and the manager who signs off the work. An image of the leak, next to a rupee figure from the leak cost calculator, closes that gap faster than anything else we have seen.
Using it on a survey
- Scan systematically, not opportunistically. Work the distribution system in sections and record which sections are done, or you will survey the busy areas twice and the far corners never.
- Survey during production at normal system pressure. Leak signal strength depends on differential pressure, so a survey at reduced pressure understates the problem.
- Capture the image at the moment you find it. Re-locating a leak to photograph it later doubles the work.
- Re-survey after repairs. The same tool that found the leak proves it is gone, which is what makes the savings defensible.
Frequently asked questions
What is an acoustic imaging camera?

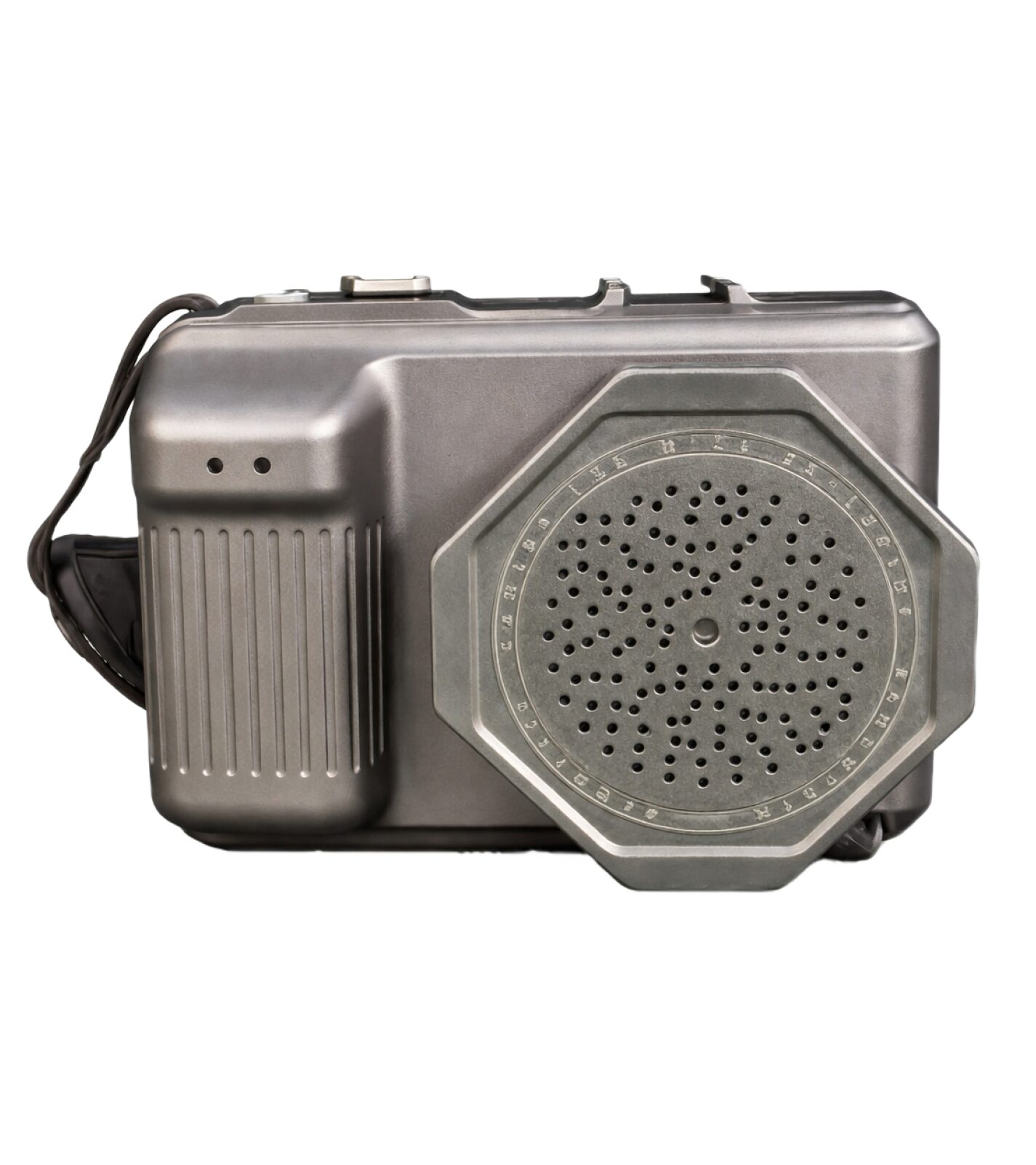

An array of ultrasonic microphones combined with a camera. The array works out the direction each ultrasonic sound is arriving from and overlays it as a colour map on the live image, so a leak appears as a bright spot on a picture of the pipe it is coming from.
How far away can it detect a leak?
Range depends on leak size, line pressure and how much competing ultrasound is present, so any single figure would be misleading. Larger leaks at higher pressure are detected from considerably further than pinholes at low pressure. Tell us your plant layout and typical pressure and we will advise realistically.
Does it work in a noisy plant?
Yes. Machinery noise is overwhelmingly below 20 kHz and the leak signal is above it, which is why ultrasonic methods are used during production rather than during shutdowns.
Can it find leaks in gases other than compressed air?
Yes, for any pressurised gas escaping through a small opening, including nitrogen and other inert gas systems.
Should we buy one or have WiseAir survey the plant?
If you will survey more than once or twice a year, owning the instrument usually works out cheaper and means you can verify repairs immediately. If you want a costed report and a baseline first, start with a compressed air audit and decide afterwards.
Related: compare all WiseAir leak detectors · WA-EUS-740 compact detector · leak cost calculator.
