Ultrasonic Flow Meter – WUFS 904

The ultrasonic flow meter from WiseAir is designed for accurate and reliable flow measurement across a wide range of industrial applications. Using advanced transit-time technology, the meter measures fluid or compressed air flow without interrupting the pipeline. The WUFS 904 supports both clamp-on and insertion-type ultrasonic flow sensors, providing flexible installation options for different pipe sizes and measurement requirements. With a clear LCD display, totalized flow measurement, and multiple output options, this ultrasonic flow meter helps industries monitor flow performance efficiently. It is suitable for pipe sizes ranging from DN 15 to DN 1000.

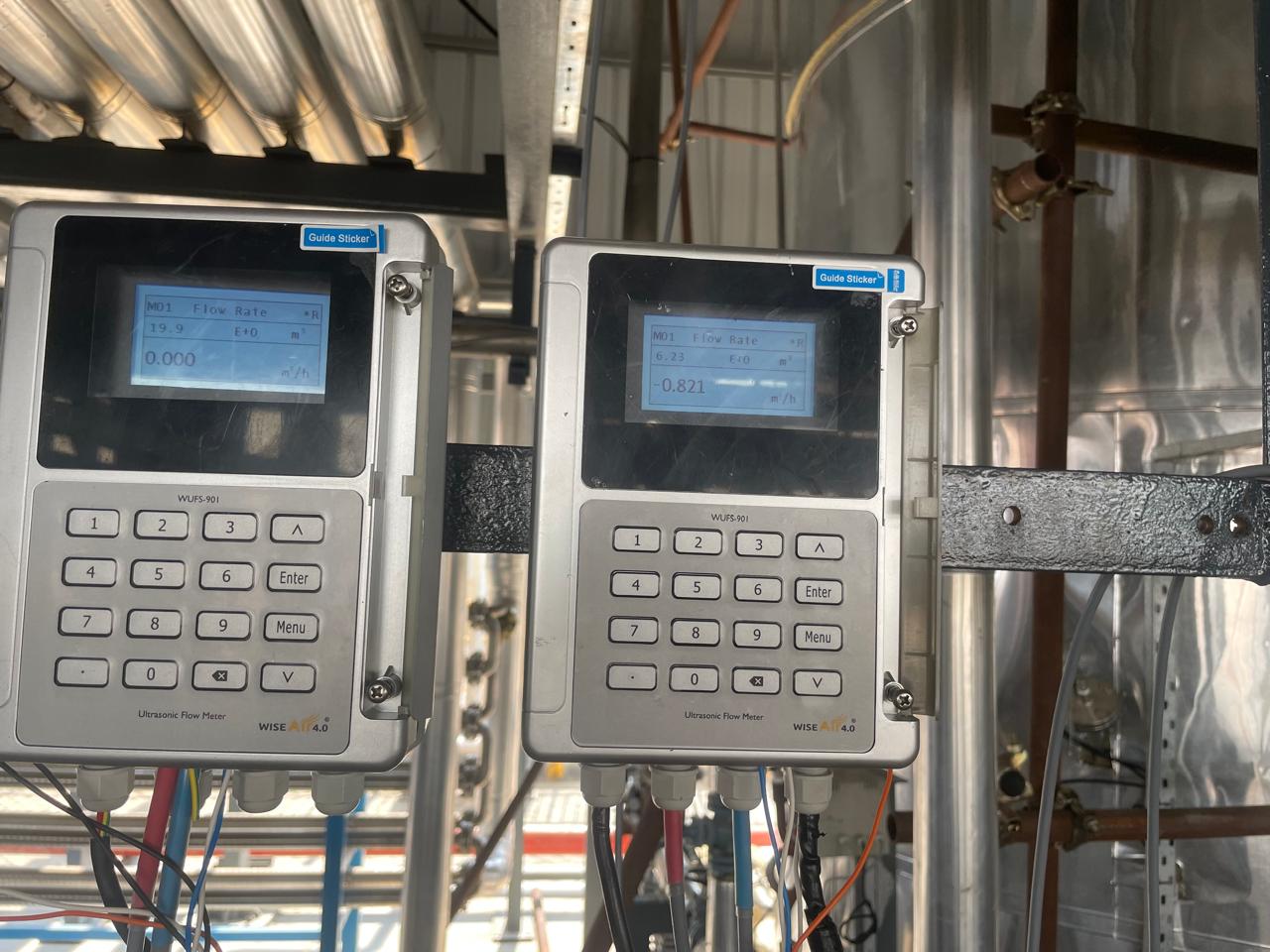

Introducing our cutting-edge Wall-Mount Ultrasonic Flow Meter – the WUFS 904. Utilising transfer time technology, this innovative flow meter is designed with an FPGA chip and low-voltage broadband pulse transmission. It comes with the flexibility of both Clamp-On and Insertion type sensors, enabling you to choose the best option for your application.

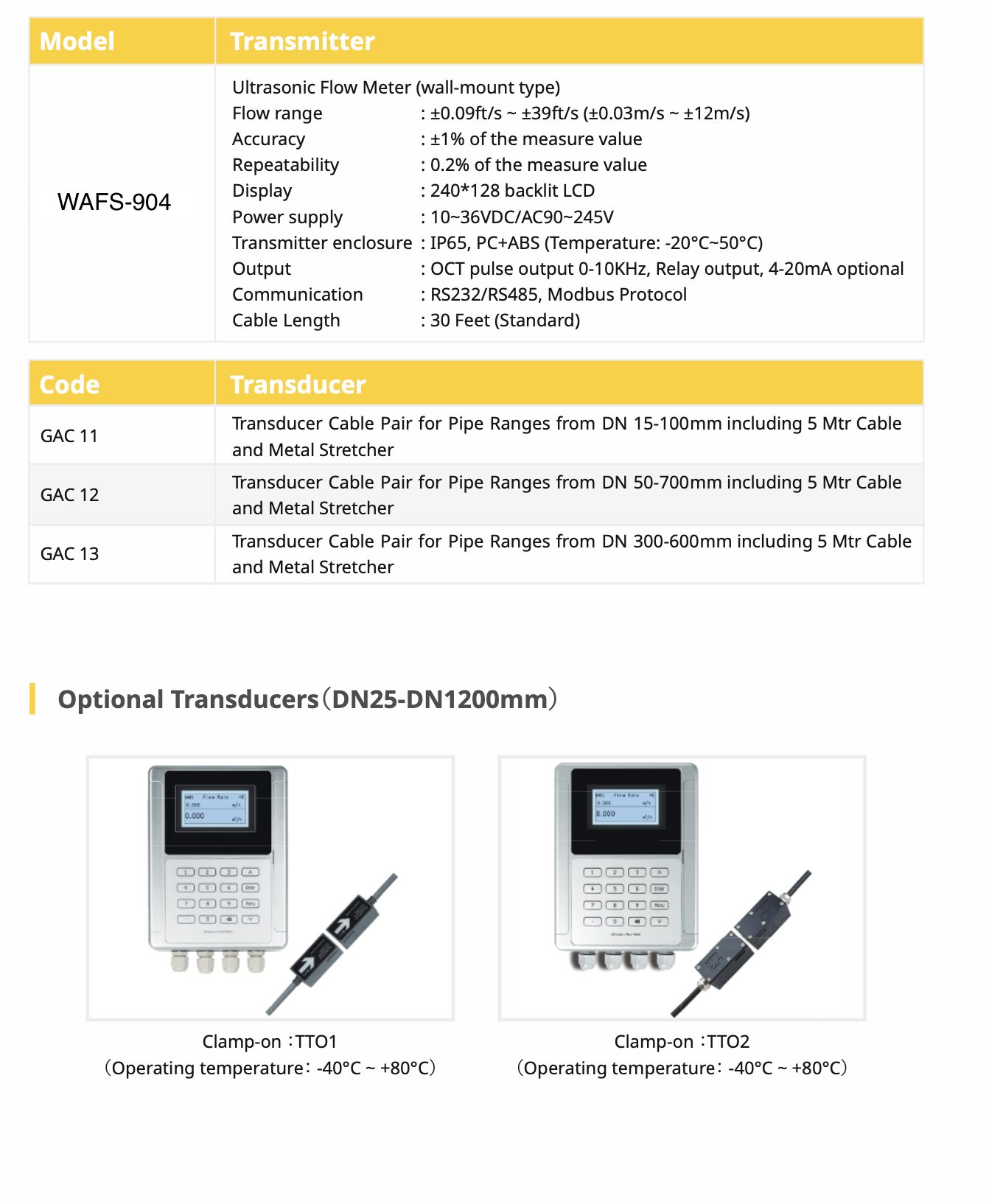

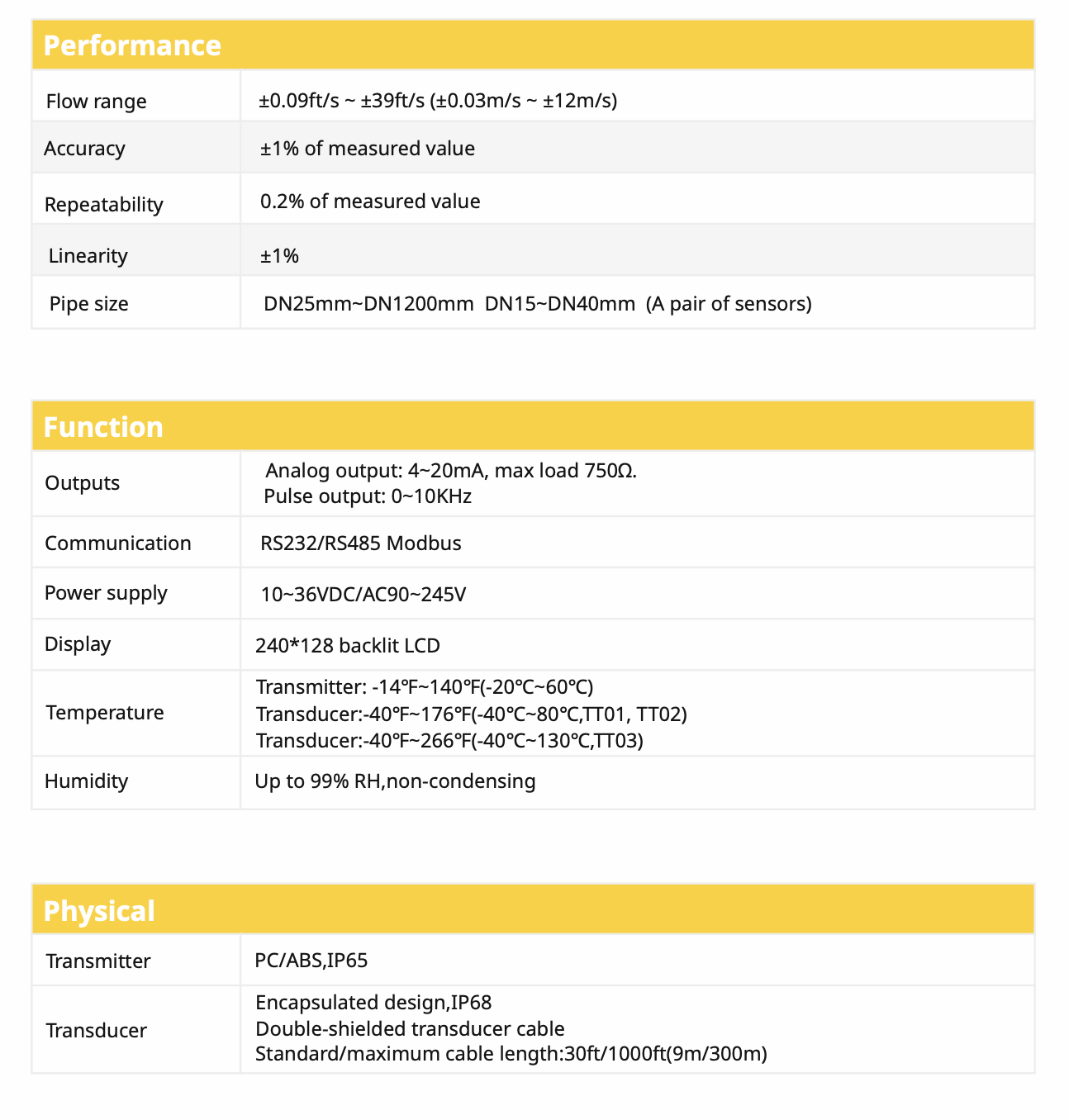

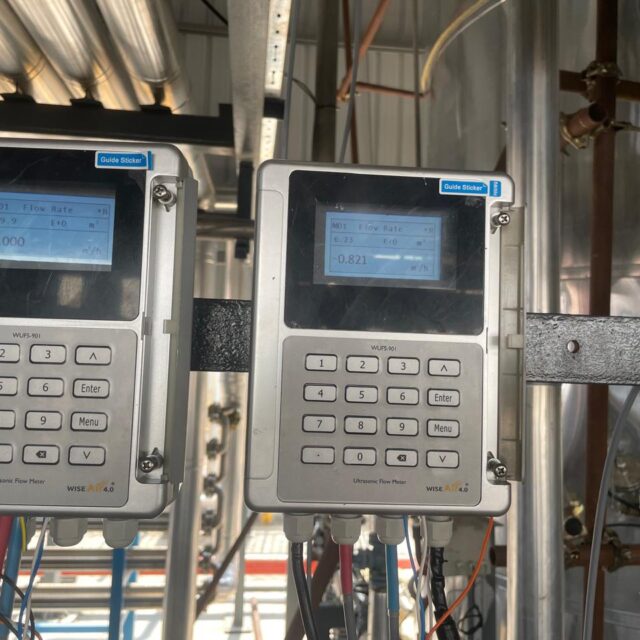

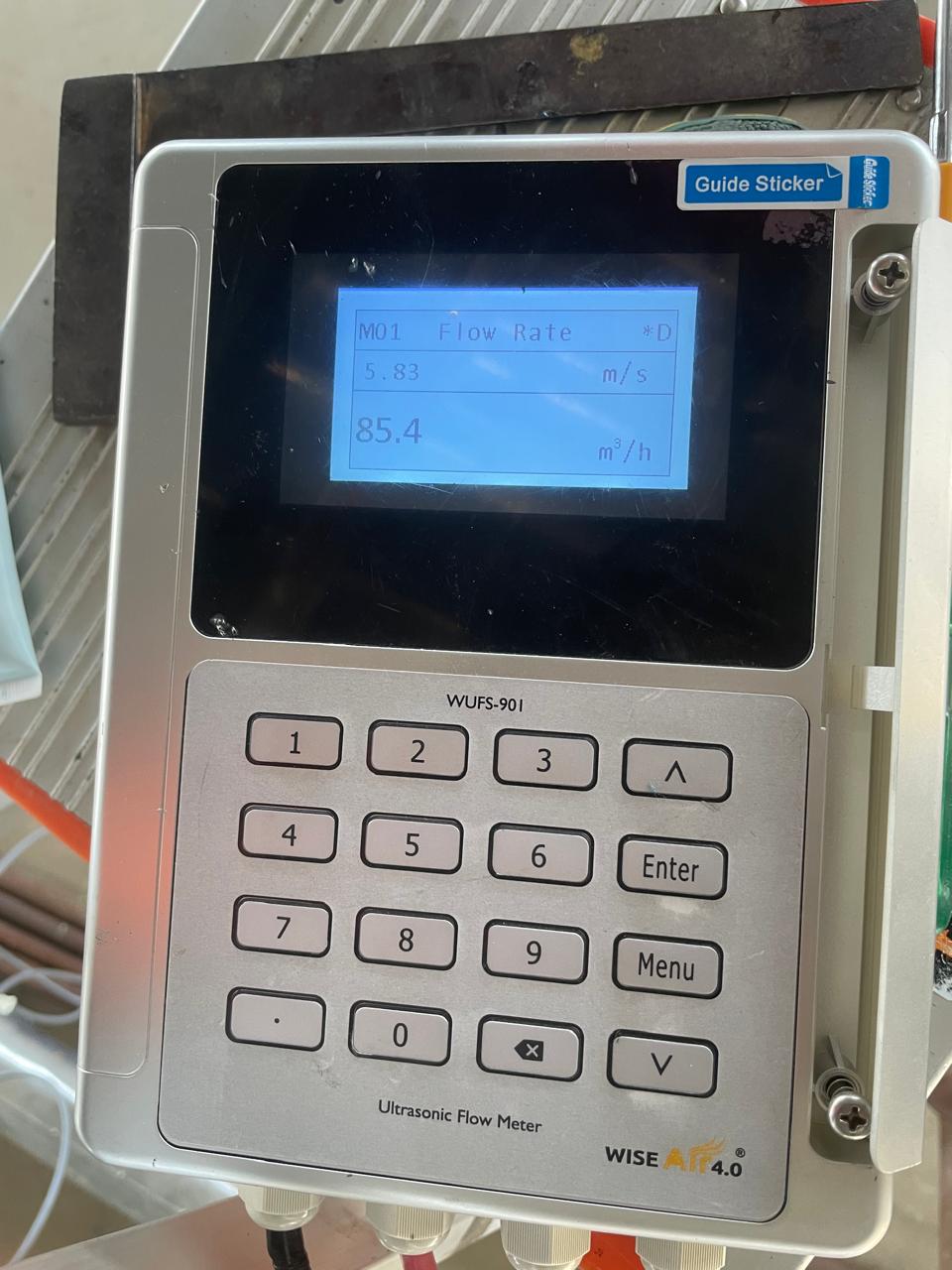

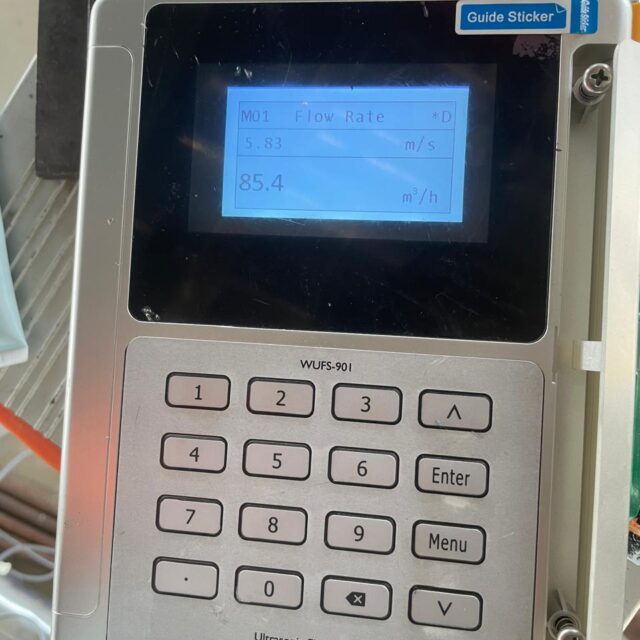

The WUFS 901 features a 240*128 backlit LCD display with a user-friendly menu selection and 4- line display. The totalized flow can be measured on a daily, monthly, and yearly basis. Additionally, it offers parallel operation of positive, negative, and net flow totalises with a scale factor (span) and BTU capacity. The totalise pulse and frequency output are transmitted via relay and open collector.

Suitable for Pipe Sizes from DN 15 to DN 1000

Ultrasonic Flow Meter Working Principle

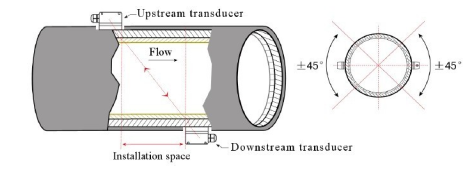

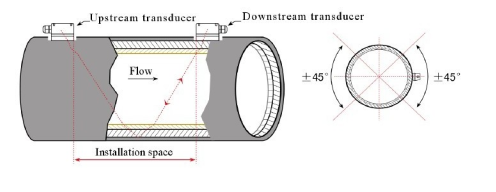

The ultrasonic flow meter working principle is based on transit-time technology, where ultrasonic signals are transmitted between sensors installed on the pipe. The difference in transit time of the signals travelling upstream and downstream is used to determine the flow rate. This non-invasive measurement method allows the ultrasonic flow sensor to measure flow without requiring major modifications to the pipeline. WiseAir’s WUFS 904 uses advanced signal processing with an FPGA chip to provide reliable and accurate flow measurement.

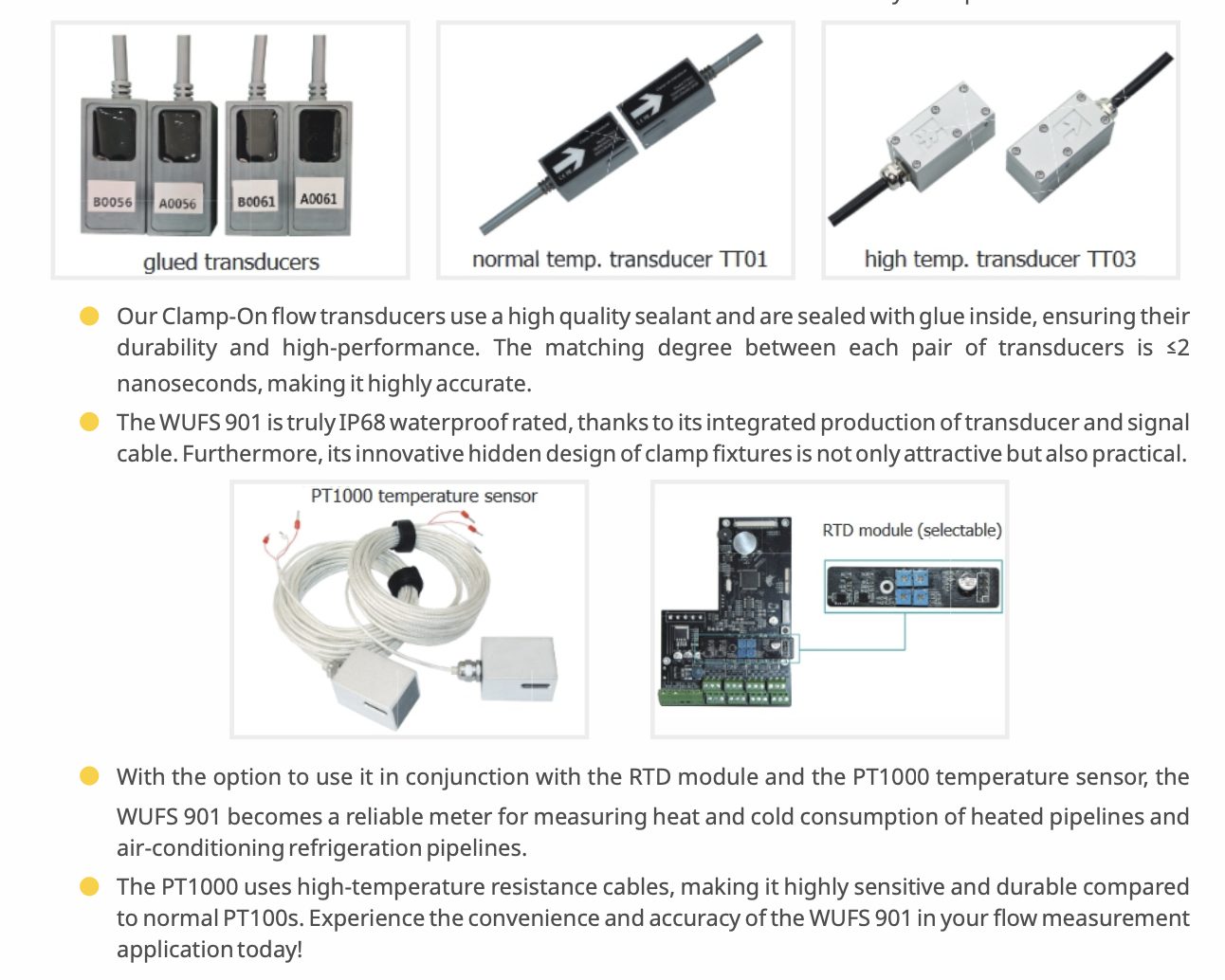

Clamp On Ultrasonic Flow Meter and Flow Sensor

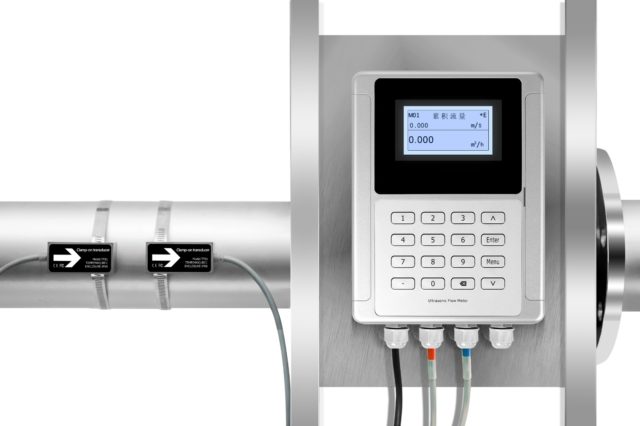

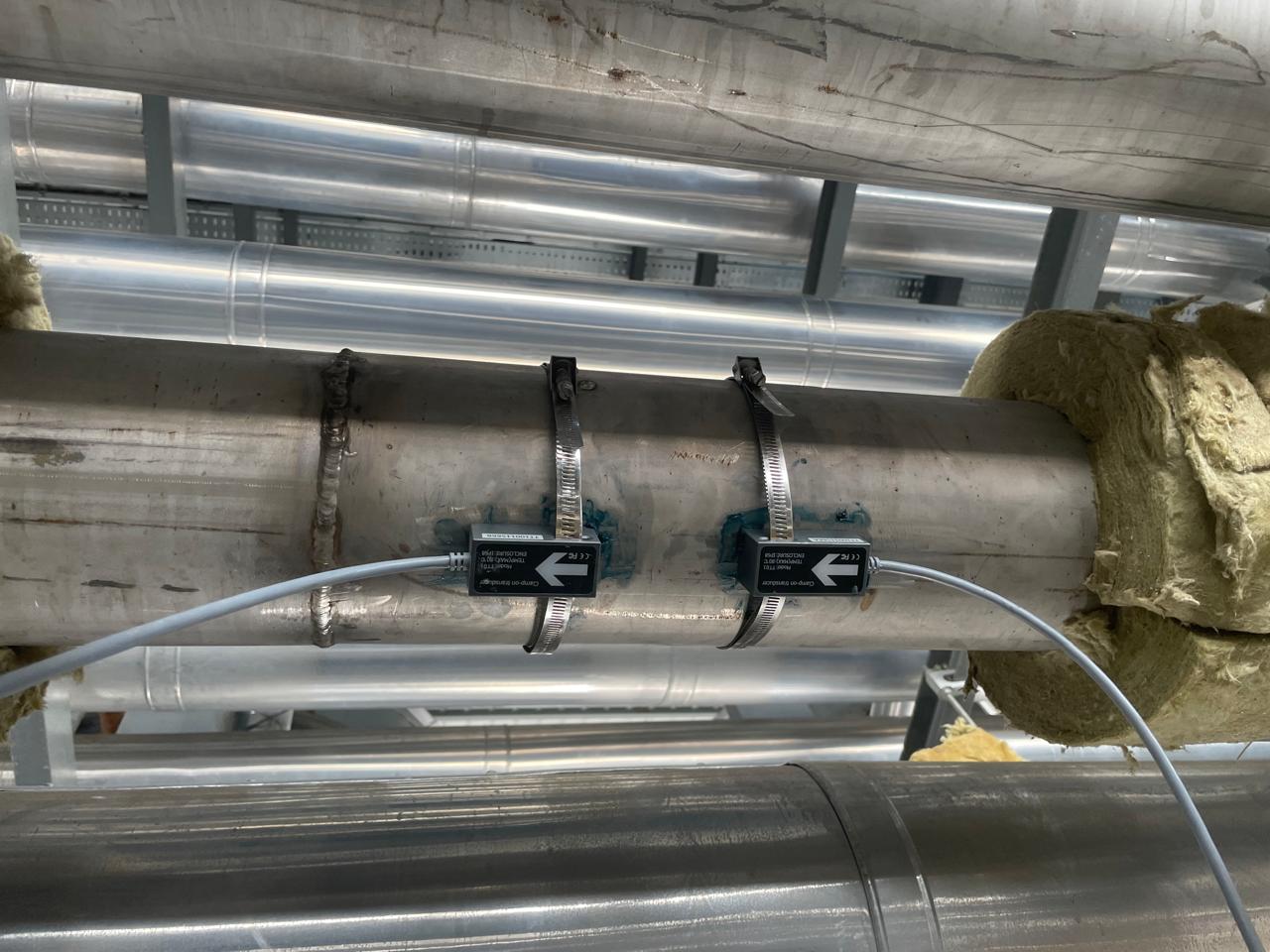

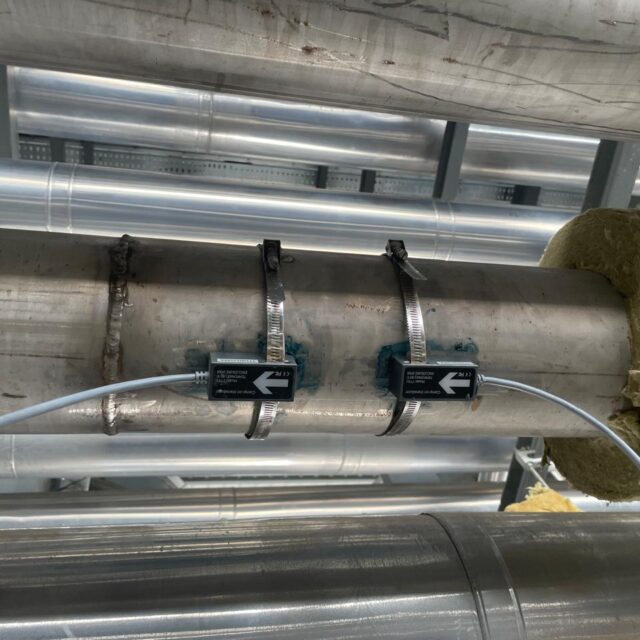

A clamp on ultrasonic flow meter provides a flexible solution for applications where cutting or modifying the existing pipeline is not preferred. The transducers can be mounted externally on the pipe, making installation and maintenance more convenient. WiseAir also offers insertion-type ultrasonic flow sensors for applications requiring an alternative sensor configuration. Depending on the application, pipe size, and measurement requirements, users can select the suitable configuration for efficient flow monitoring.
